🛠️ How to Set Up Your Dashboard with SimHub

Welcome to the MOS Dashboard Setup Guide! This step-by-step tutorial will walk you through installing SimHub, understanding the differences between the free and paid versions, and correctly installing the required configuration files for full dashboard functionality.

🧩 Step 1: Install SimHub

Go to the official SimHub website:
👉 https://www.simhubdash.com

Download and install the latest version of SimHub.

Launch SimHub after installation.

💡 Step 2: Free vs. Paid Version

🔥 Recommendation: For the best dashboard experience, we highly recommend upgrading to the paid version of SimHub.

📥 Step 3: Download Required Files

You’ll need two configuration files:

• ✅ MOS_Dash_3.5S.ledprofile – Controls the LED behavior
• ✅ MOS_Dash_3.5S.shdevice – Dash board configuration
• ✅ MOS_Dash_3.5S.shdevicetemplate– Dash board template

👉 Download Config Files and extract the folder

📂 Step 4: Install Config Files

1. LED Profile
   • Open SimHub → Arduino → Profile Manager -> LED Profiles
   • Click Import Profile and select the .ledprofile file
   • Click Load
2. Enable LEDs
   • Inside Arduino -> go to My Hardware tab
   • Select Single arduino or Multiple arduinos
   • Make sure that the dash board is connected via the provided USB cable

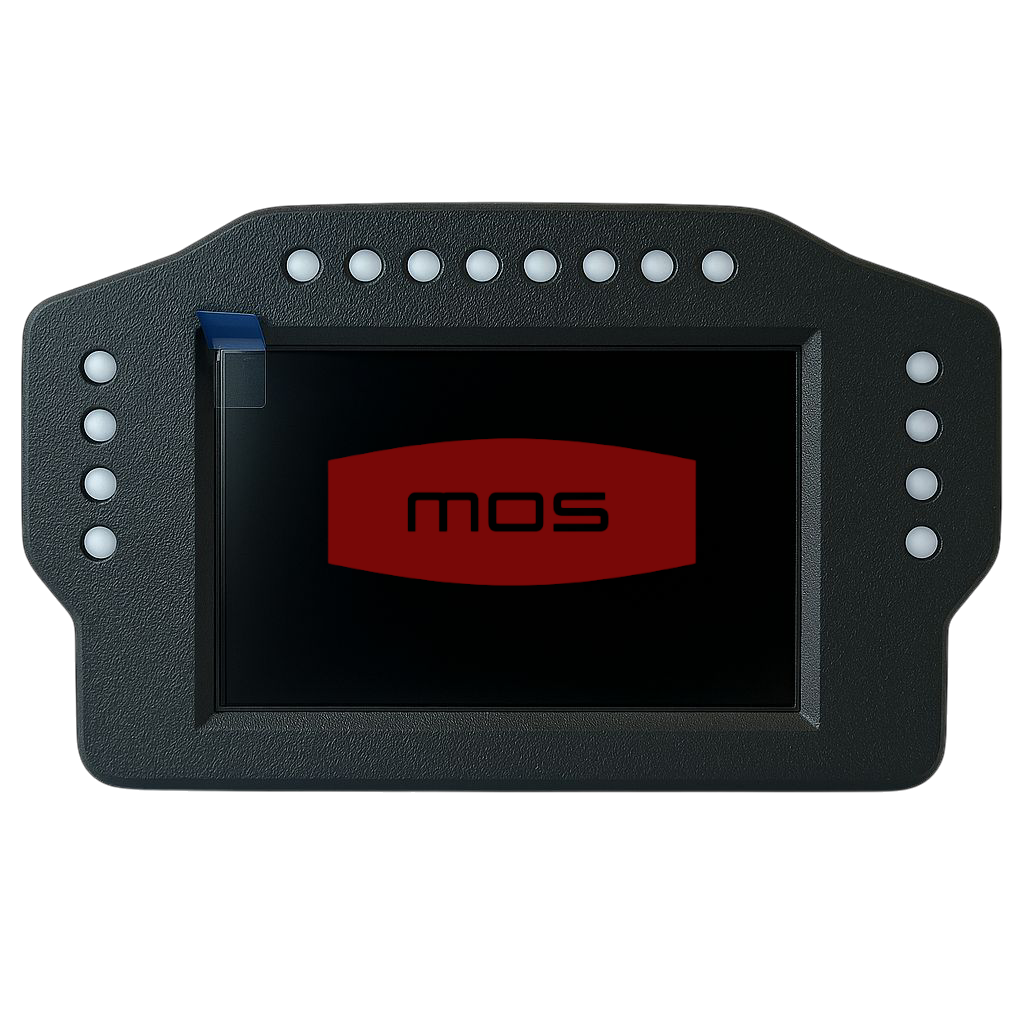

   • Simhub should recognize the LEDs in the dashboard (showing am MOS Dash 3.5s device with RGB leds from 1 to 16 in connectd status)
3. Add device template to Simhub
   • open the file *.shdevicetemplate
   • it should open simhub and install the device template
   • you must restart simhub
4. Dashboard Device
   • Go to Devices → Import device from file
   • and choose the .shdevice file

⚙️ Step 5: Device Settings for Optimal Performance

To ensure your MOS dashboard works correctly:

1. Disable Dithering Filter
   • Go to Devices > MOS Dash 3.5S > Screen Settings
   • make sure to Uncheck Dithering Filter
2. Enable Partial Refresh (Partial Draws)
   • In the same menu, make sure Partial Draws is enabled
   • This allows faster and smoother updates

🚨 These two steps are critical. If skipped, the dashboard may lag or display will not work.

✅ Recommended dashboard

We recommend the use of the lovely dashboard as it is well compatible with our dashboard display. (Click here to download it)

✅ You’re Ready to Race! 🏎️

Now you can launch your favorite sim racing game, and your dashboard should light up with real-time data — RPM, gear, speed, and more!
